AGRAS T20

DJI Agriculture combines expertise in agriculture and energy, technology, stability, safety, and efficiency to greatly contribute to sustainable development, increase crop yields, reduce carbon dioxide emissions, and effectively increase the value of farmland and increase farmers’ income.

At the same time, DJI’s artificial intelligence technology, high-quality sensors and big data can help farmers easily measure and identify plant health in a more effective space and time. Such artificial intelligence tools combined with the experience of scientists and growers can promote crop/seeds guidance and product optimization.

At present, DJI agricultural drones are popular and widely used by farmers and agriculture institutions all over the world.

Let’s take a look the state-of-art technology from DJI Agras T20.

Intelligent & Autonomous precision RTK operated

Spraying & Spreading 2 in 1 Drone

Complete More Work in Less Time

Three major industry firsts

The first is that the T20 has achieved the industry’s first high-precision flow control.

The second is that the T20 is equipped with the industry’s first active valve control system.

The third is that the T20 is equipped with the industry’s first omnidirectional digital radar.


20L

20L Spray Tank

RTK

RTK Centimeter Level Positioning

IP67

Core Module IP67 Rating



Omnidirectional digital radar

Real-time image monitoring system



AI Engine

Multiple guarantees, safer flight

The T20 is also equipped with a real-time image monitoring system and night searchlights, allowing you to work at night in a short window periods.

 No need for cooling, can be charged directly!

T20 use a better chemical system, achieving 3.5C speed charging, charged 15 min to operate 8.5 minutes with full payload. And there is no need to cool down the better when the drone fly back.

Basic parameters :51.8V, 18000mAh, 932Wh
Service life :600 cycles
Discharge capacity :160A, heat reduction
Features
The battery cell can realize self-balance and discharge by itself (automatically start after 10 days of full charge)

TFour-channel 2600W charger:

Fast charge mode: 1 battery for 15 minutes
Slow charge mode: 4 batteries 80 minutes



Orchards mode spraying operation

T20 fruit tree mode operation supports fixed-point routes and free routes. The powerful wind field makes the fruit tree spraying work excellent.

Phantom 4 RTK mapping
Phantom 4 RTK is used to survey and map the work area, and generate three-dimensional images of fruit trees and three-dimensional route maps in Terra software, so as to ensure that the height of the aircraft and the crops are consistent during the flight, without being affected by the terrain.

AI recognition
Recognition objects include: fruit trees, buildings, ground, water surface, telephone poles

Operating mode
It has continuous operation routes, free routes, and fixed-point routes operation modes to meet the needs of different fruit tree operations.

The video on the right shows how it works in the orchard, at 2:03 of this link, and the device is the previous generation Agras T16.




The currently newly released and available Canadian version/model is Agras T20.

DJI stated that the precision prevention of fruit trees in the era of artificial intelligence has changed from a vision to a reality.

T20 can realize hovering and spraying for each fruit tree, and can perform automatic operation in irregular orchards, automatically avoiding obstacles such as buildings, ponds and wires, and the whole process does not require manual intervention.

After completing the job scene recognition through AI, the plant protection machine understands the distribution of fruit trees and ensures that the plant protection machine only sprays where there are fruit trees and stops where there are no fruit trees. All of this is performed automatically.


A T20 drone can spray 10 acres in-irregular orchards in one hour.

T20 can also help pollinate crops (whether in the form of increasing the wind field or spreading pollen liquid)

Easy to transport and clean

The T20’s fuselage has a modular design that can be quickly folded, reducing space and facilitating transportation. The operation box and battery support quick insertion and removal, which shortens the operation and replenishment time. The core module has an IP67 protection level, and the body can be washed directly with water.



Spreading System 2.0

Spreading system 2.0 has a large capacity of 20L and a large flow of 15kg/min. It can be used for sowing seeds, chemical fertilizers, feed feeding, sowing granular herbicides, rapeseed sowing, grassland reseeding and other operations can be easily completed, and the sowing effect is excellent.

7 meters spreading width

Install the spreader on the T20 in 3 minutes

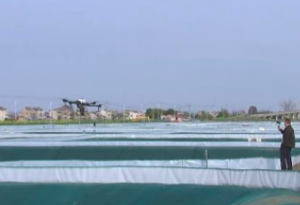

  • Spread fish feed and shrimp feed evenly



  • Fully automatic operation



  • Precise feed dosage



  • Remote control operation

Solution

For various fields such as fields, fruit trees, and grasslands, you can use DJI’s agricultural intelligent solutions to greatly simplify operation operations. With drones and efficient tools, you can improve overall operation efficiency and promote industrial upgrading.

3D route planning

Use 3D route solution to solve the problem of difficult terrain operations. After efficient mapping using Genie 4 RTK, DJI Terra will digitally model the working area, and then crops and non-crops in the area will be identified. Taking the orchard operation as an example, after identifying the attributes of the object, the software will generate a three-dimensional automatic route based on the growth form of each fruit tree. The task will be distributed to the T20 via the DJI Agricultural Service Platform to perform efficient drug spraying.

01

02

03

04

Acquisition:

Plantom 4 RTK

Planning: DJI Maps

Task Management: DJI Agricultural Service Platform

Assignment: T20 Plant Protection UAB

Centimeter-level positioning, High-precision data acquisition 250 acres image acquisition in 25 minutes.

Real-time mapping

2D / 3D modeling

AI job planning

Remote task management

Remote device management

Efficient operation 30 acres of work completed every hour

Precision agriculture

Precision agriculture solutions can be used to differentiate the application rate of crops in different areas. After collecting multi-spectral imagery of farmland using Phantom 4 Multispectral Edition, it can be used with DJI Terra software to generate multispectral imagery of farmland. Farmer will perform precise fertilizer spreading or spraying of liquid medicine by using T20 according to the prescription map guidelines. Thereby reducing the workload, improving work efficiency, and reducing the use of pesticides.

DJI’s precision agriculture solution brings about a 10% increase in production and a 10% reduction in fertilizer use, which improves farm management efficiency and at the same time achieves the effect of reducing fertilizer use and increasing production and income.

01

02

03

04

Acquisition: Phantom 4 Multispectral Edition

Planning: DJI Maps

Task Management: DJI Agricultural Service Platform

Assignment: T20 Plant Protection UAB

Centimeter-level positioning Multispectral data acquisition 115 acres image acquisition in a single flight.

Real-time NDVI graph Agricultural prescription map AI job planning

Remote task management

Remote device management

Precision work

The performance of the new generation of remote controllers has been significantly improved compared to the previous generation. At the same time, the MG app has been fully upgraded, the system runs smoother and the interface operation is simpler. Standard RTK high-precision positioning module, easy to achieve cm-level operation planning.

Equipped with a 5.5-inch high-brightness screen, you can see the screen clearly and operate easily under the scorching sun. The remote control supports external batteries, and the overall battery life is doubled compared to the previous generation, which fully meets the needs of continuous and high-intensity operations.



Agras T20 Agriculture Drone


  • Whole body IP67 Rating
  • RTK Centimeter-Level Positioning
  • 360D DBF Imaging Radar
  • Wide-Angle FPV Camera
  • AI Engine
  • Fast Charging System
  • 600 Times Battery Cycle
