T25

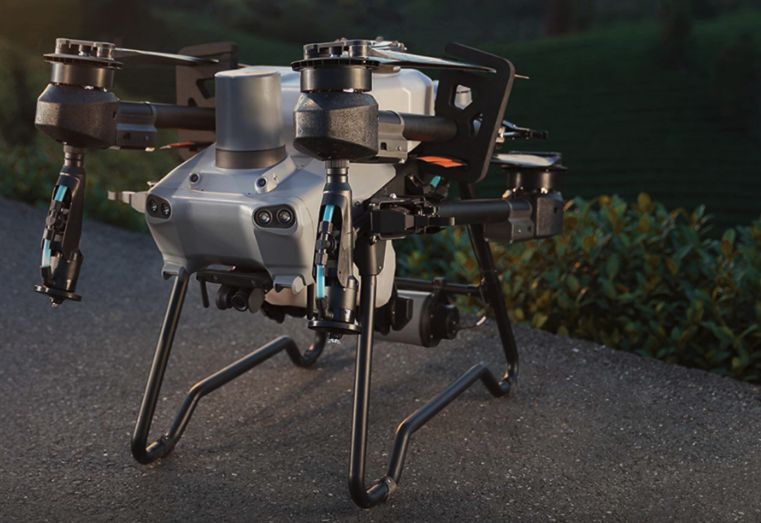

DJI Agras T25

The new T25 agricultural drone has a maximum spraying load of 20 kg[1] and a sowing load of 25 kg[1]. It is equipped with front and rear active phased array radars, a new binocular vision system, an ultra-high-definition FPV gimbal camera, and aerial survey[19] Integrated with plant protection, suitable for a variety of terrains, lightweight and flexible, suitable for single-person operations.

Large load

20kg spray[1]  16L/Min
25kg broadcast[1]  72KG/Min

Lightweight and flexible

Foldable & portable for one person

Small size, easy to take off & land

Aerial survey and mapping integrated

Aerial survey of 20° slope orchard[4]
Autonomous aerial survey of farmland

Omnidirectional obstacle avoidance[5]

2 sets of active phased array radars

2 sets of binocular vision

Extremely fast charging

9 minutes quick charge[6]

Gasoline + mains electricity dual engine[7]

Strong Signal Ability

Four-antenna 2 km[8] image transmission

Optional relay to avoid signal blockage

Work efficiency in farm operations

Spraying: 30 Acres/H

Spreading: 1Ton/H

Easy folding, flexible operation

The new T25 agricultural drone adopts a foldable design and a lightweight body optimized for single-person operations. After unfolding, the area is reduced by 21%[11], making it flexible for transitions and making take-off and landing more convenient.

Spraying System

Large flow, good atomization, no leakage

Equipped with additional nozzles, no need to turn around

The new T25 agricultural drone can be equipped with a pair of centrifugal nozzles to increase the number of nozzles to 4 nozzles[12]. Manual operations do not require turning around, and the operation is simple, easy and efficient. Equipped with an ultra-high-definition FPV pan-tilt camera with adjustable angle, it can view the surrounding operating environment in real time to ensure operating safety.

Sprinkler system
Large flow, good atomization, no leakage
The dual atomization spray system brings a super large flow rate of 16 liters/minute (spraying with 2 nozzles), and the mist droplets are even and fine, without dripping. A pair of centrifugal nozzles can also be added to increase the flow rate to 24 liters/minute (spraying with 4 nozzles) to adapt to large water volume operations.

Magnetic drive impeller pump
The dual-pump flow rate is as high as 24 liters/minute[2], which is 100% higher than the previous generation, further solving the needs of large-water operations in dry fields, fruit trees, and high-temperature conditions.
The dual-pump flow rate is as high as 24 liters/minute[2], which is 100% higher than the previous generation, further solving the needs of large-water operations in dry fields, fruit trees, and high-temperature conditions.

Double atomization centrifugal nozzle

The mist droplet size is adjustable, with a particle size range of 50-330 microns, adaptable to more chemicals.  The mist droplet size is adjustable, with a particle size range of 50-330 microns, adaptable to more chemicals.

Brand new solenoid valve
Precise start and stop to prevent dripping.

Spreading System

T25 spreading system (25 kg) [1]
Quick addition and even spreading
Spiral flow channel spinner greatly improves spreading uniformity.

35 liter capacity

It has a load capacity of 25 kg[1], a capacity of up to 35 liters, and a large feeding port for quick feeding.

Spread evenly

For small flow spreading, the small chamber disk set can be replaced and equipped with a spiral flow channel spinner to spread more evenly.

Real time weighing

Equipped with a standard weighing sensor, the remaining material quantity can be known in real time.

Quick release and quick wash

The spreader is quick to disassemble and wash, making maintenance easy.

Hundreds of reliability tests,
The work is safe and stable
Plant operations are frequent, intensive, and complex environments. The T25 has passed hundreds of reliability tests and has a solid and reliable body to ensure the safety of your operations.

Dual radar, dual vision, double peace of mind
T25 is equipped with an active phased array radar system, which doubles the number of radio frequency transceiver channels [18] and achieves higher detection accuracy. Combined with two sets of binocular vision, it can accurately depict details of terrain and obstacles. To further ensure operational safety, the T25 is also equipped with a rear phased array radar to achieve 360-degree omnidirectional sensing [5] and intelligent detours [13]. Facing large-slope mountain operations, it can achieve fully automatic ground-imitating operations [13].

Terrain prediction

Smooth around obstacles

Aerial survey of farmland or orchards [19] Plant protection, all in one!
The new T25 agricultural drone integrates aerial survey[19] and plant protection. It is equipped with an ultra-high-definition FPV gimbal camera with adjustable angle, which can collect images of farmland and orchards in real time. When used with a smart remote control, it can generate high-definition maps and routes. Take off with one click and realize automatic operation at all times.

Aerial survey of fruit trees[19]

Equipped with an obstacle avoidance system, it can achieve aerial survey of fruit trees with a maximum slope of 20°[4][19], automatically identify the number of fruit trees and obstacles, and support adjusting waypoint heights to generate accurate three-dimensional routes based on the distribution trend of fruit trees.

80 acres mapped in 10 minutes[14]

Orchard 3D map

Field Mapping

Entire land Mapping

Map 33 acres in 10 minutes[14]

Circle Route Mapping

Map 33 acres in 3 minutes[14]

High brightness, large screen remote control
Equipped with an 8-core processor, it has powerful computing power and smoother operation. Intelligent route planning reduces empty flights with full loads and greatly improves operational efficiency. The 7-inch high-brightness large screen doubles the field of view and captures every detail. Manual mode can be switched for easy control.

Stable signal, always stay online
The newly upgraded four-antenna O3 image transmission system does not require a mobile network (cellular network) and has a transmission distance of up to 2 kilometers [8]. It enhances the anti-interference ability of the image transmission system and greatly improves the signal quality for tall crops.

Relay module (optional)
When encountering operating scenarios where the image transmission signal is seriously blocked, a relay module can be optionally installed. The image transmission is always online, making the flight safer.

DB800 intelligent flight battery
Capacity up to 15.5 Ah, longer battery life
Guaranteed cycle 1500 times[15]

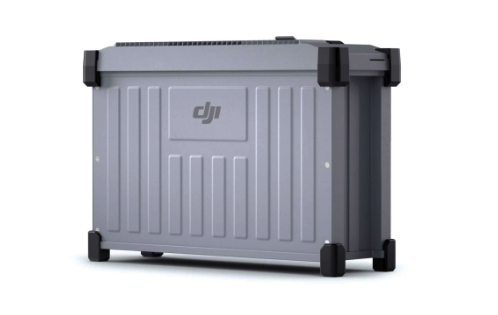

Intelligent charger
5400W fast charging[17]
Dual channel charging
Power adaptive protection

Smart agricultural ecosystem
Through the DJI smart agriculture platform and the new Mavic 3M aerial survey drone, smart agricultural solutions such as automatic field patrols, land leveling monitoring, growth analysis, and prescription map variable operations can be realized. Based on crop growth conditions and combined with farmland prescription maps, agricultural drones can achieve precise variable operations, such as variable fertilization of rice, variable control of cotton, variable nutrient solutions of soybeans and corn, etc.

Don’t know how to fly? Don’t worry, we have DJI-certified instructors to help you master all the skills of flying a drone and learn how to repair it yourself through DJI Academy courses!
